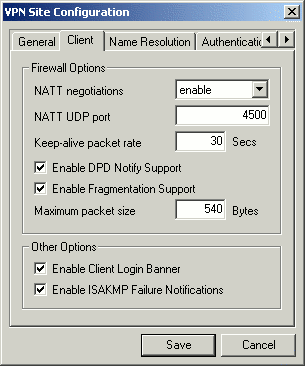

The Client Settings Tab is used to define the client configuration parameters
required to communicate with the remote Client Gateway.
NAT-T Negotiations
Set this value to Enable or Force if you would like the VPN Client IPSEC Daemon
to use the IKE and ESP NAT Traversal protocol extensions. When the value is
set to Enable, the protocol extensions will only be used if the VPN Gateway also
has support and NAT is detected. When the value is set to Force, the protocol
extensions are used regardless of wether or not the VPN Gateway has support
or NAT is detected. The default value for this setting is Enable.
NAT-T UDP Port
Enter the UDP port that the VPN Client Gateway is using for NAT-T services.
The default value for this setting is UDP port 4500.
Keep-Alive Packet Rate
Enter the rate at which the Client IPSEC Daemon should send NAT-T Keep alive
packets. Keep alive packets can help prevent problems from occurring when a
Firewall or NAT exists between the VPN Client and the Peer Gateway. The
default value for this setting is 30 seconds.
Enable DPD Notify Support
Enable this option if you would like the VPN Client IPSEC Daemon to use the Dead Peer Detection protocol extension. When the option is enabled, the
protocol extension will only be used if the VPN Gateway also has support. This
will allow the client and Gateway to detect when one side of the tunnel is no
longer able to respond. The default value for this setting is Enabled.
Enable Fragmentation Support
Enable this option if you would like the VPN Client IPSEC Daemon to perform IP
Packet Pre Fragmentation. Enabling this option will also enable the IKE
Fragmentation extension. The default value for this setting is Enabled.
Maximum Packet Size
When the Fragment Packets option is enabled, this value specifies the largest
non-fragmented packet size allowed. If a packet size is larger than this value,
fragmentation is performed. This setting applies to both IP Packet Pre
Fragmentation and IKE Packet Fragmentation. The default setting for this value
is 540 bytes.
Enable Client Login Banner
Enable this option if you would like the client to display a Login Banner after
establishing a connection with the Gateway. The Gateway must support the Configuration Transaction Exchange and be configured to forward a login banner
to the Client.The default value for this setting is Enabled.
Enable ISAKMP Failure Notifications
Enable this option if you would like the VPN Client IPSEC Daemon to forward
ISAKMP failure notifications for connection associated with this Site
Configuration. The default value for this setting is Enabled.
