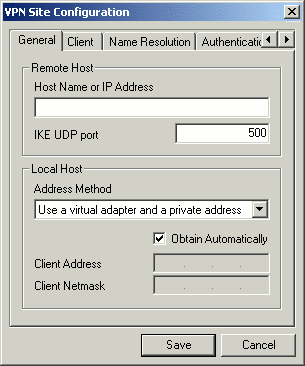

The General Settings Tab is used to define the general configuration parameters
required to communicate with the remote Client Gateway.
Host Name or IP Address
Enter the host name or IP address for the VPN Client Gateway that will service
this site. The use of a host name instead of static IP address is recommended
when non-address Peer identifiers are used. This allows the the public gateway
address to be modified without invalidating Client Site Configurations.
Address Method
Select the method used to address the private network traffic. At this time, the
only method available is to use a virtual adapter and a private network address.
Client Address and Netmask
When a remote gateway is configured to support the Configuration Transaction
Exchange, it can be configured to assign a valid client address and netmask
automatically. If not, uncheck the Obtain Automatically option and enter a valid Client Address and Client Netmask for this site configuration.
