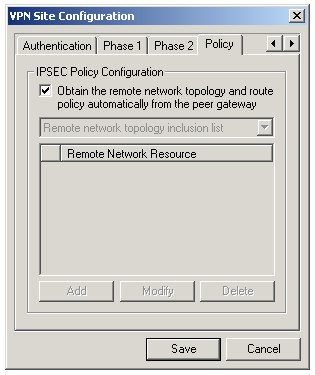

The Policy Settings Tab is used to define the security policies that are required
for the Client to communicate with remote hosts or networks that exist for this site
configuration.
Automatic Policy Configuration
When a remote gateway is configured to support the Configuration Transaction
Exchange, it should be able to provide a list of hosts and networks that are
accessible via this site configurations Client Gateway. This network topology
information, along with the client address automatically obtained or manually
configured in the Client Settings tab, are used to describe the security policies for
this site configuration. The default value for this setting is Enabled.
Remote Network Topology List
There are two options available for configuring a Remote Network Topology List.
Topology Inclusion List
When an Inclusion List is used, it defines the hosts and networks that are
assumed to be accessible via this site configurations Client Gateway.
Topology Exclusion List
When an Exclusion List is used, all traffic is sent to the remote peer by
default unless it the destination is a host or peer defined in the list.

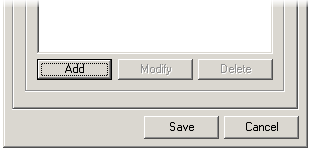

Managing the Network Topology List
You can Add, Modify or Delete Network Topology List entries by using the
buttons shown at the bottom of the Policy Configuration dialog. These buttons
will be grayed out if Automatic Policy Configuration option is Enabled.

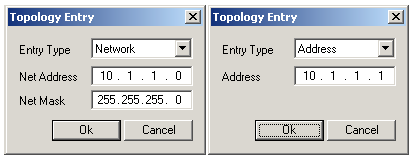

The Topology Entry Dialog
The Topology Entry Dialog is used whenever you are adding or modifying a
Network Topology List entry. Simply configure the Entry Type as either a
Network or Address and enter the required information. When you are finished
editing the Topology Entry, press the OK button to accept the entry data or the Cancel button to discard it.
